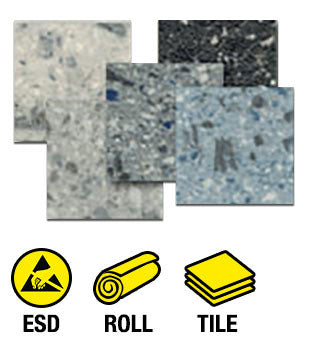

ESD Conductive Euro-Flex Role and Tile

ESD Conductive Euro-Flex™

Physical Properties and Installation & Maintenance

ESD euro-flex™ is a semi-glossy permanently ESD conductive < 106 ohms vinyl industrial flooring product.

Manufacturing Technology
Co-extrusion process with full surface conductive backings

Recommended Application
Microchip and Electronics Manufacturing; Explosives and Munitions manufacturing; Military applications; Airport control towers Computer data centers, ESD sensitive areas in medical facilities.

Rolls: 4'6" x 66' x .080" gauge
(1.4m x 20m x 2.0mm gauge)

Tiles: 24" x 24" x .080" gauge
(608 x 608mm x 2.0 mm gauge)

Rolls: 297 sft./roll = 185 lbs./roll (84 Kg/box)
Tiles: 15 tiles/box (60 sft.) = Weight/box 38 lbs. (18 Kg/box)


Color Match and marbleization are subject to commercial tolerances. No claims for visible defects or shade matching are accepted after installation.

Installation Video using UZIN KE 2000 SL Conductive Adhesive
